Aritco cabin lift
Aritco 9000
The Aritco 9000 is a cabin lift with automatic one-touch controls, built for busy public and commercial buildings. It carries 400kg or 5 people, serves up to 6 floors on a patented screw and nut drive, and needs only a 75mm pit, or a 75mm ramp where it sits directly on the floor.
- Load
- 400kg, 5 persons
- Travel
- Up to 13m
- Floors
- Up to 6
- Pit
- 75mm, or a ramp
A cabin lift built for busy public buildings
The Aritco 9000 looks and operates like a conventional passenger lift, with automatic one-touch controls at every landing and inside the cabin. Its patented screw and nut drive needs no hydraulics, so there is no leakage or smell, and it needs only a 75mm pit, or a 75mm ramp where it is installed directly on the floor.

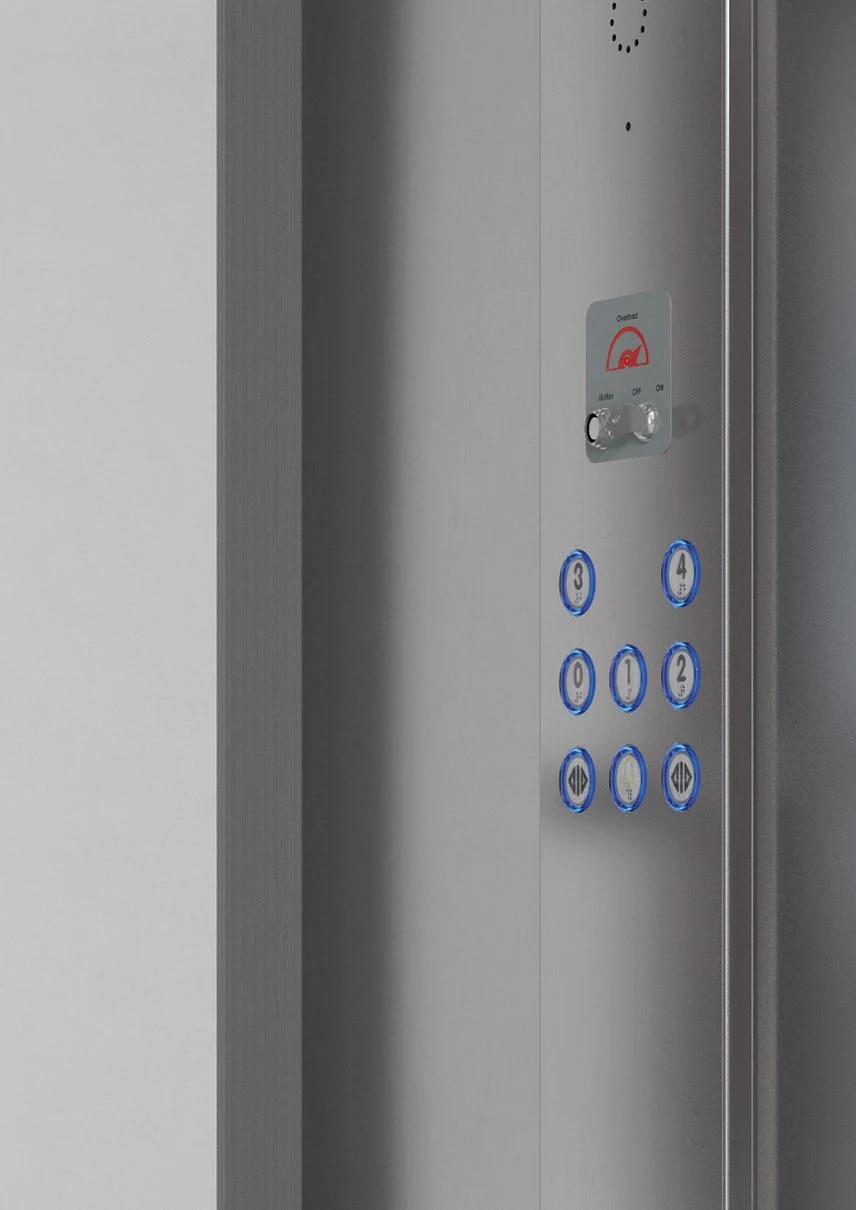

One touch, and the lift does the rest
Passengers press a button once to call and operate the lift. Structures can be finished in any RAL Classic colour, and the cabin comes in a choice of standard colours and finishes, with battery-powered emergency lowering so passengers can always get out if the power fails.
Key features
- Automatic one-touch controls at landing and in the cabin
- Patented screw and nut drive, no hydraulics
- 400kg rated load, for up to 5 persons
- Two cabin sizes, 1,000 x 1,400mm and 1,100 x 1,400mm
- Travel of 2,150 to 13,000mm, serving up to 6 floors
- 75mm pit, or a 75mm ramp where installed directly on the floor
- Minimum top height of 2,400mm
- Battery-powered emergency lowering
- Structure in any RAL Classic colour, with standard cabin finishes
- 5-year product warranty, 10-year warranty on the screw and nut
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 400kg
- Persons
- 5
Only the cabin is drawn: the shaft size depends on the doors and on whether the lift has its own structure, so it is confirmed at survey.
- Type of lift
- Cabin lift with automatic one-touch operation, for public and commercial buildings
- Drive system
- Patented screw and nut, no hydraulics
- Motor
- 3kW
- Rated load
- 400kg, for up to 5 persons
- Cabin sizes
- 1,000 x 1,400mm or 1,100 x 1,400mm
- Travel height
- 2,150 to 13,000mm
- Floors served
- 2 to 6
- Pit
- 75mm recessed below floor, or installed directly on the floor with a 75mm ramp
- Top height
- Minimum 2,400mm
- Emergency lowering
- Battery-powered
- Structure finish
- Any RAL Classic colour
- Cabin finish
- Standard range of colours and finishes
- Technical compliance
- European Machine Directive 2006/42/EC
- Warranty
- 5-year product warranty, 10-year warranty on the screw and nut
