EP heavy duty lift
EP ELFO HD
The ELFO HD is the heavy duty hydraulic lift from EP in Italy, built for people and light goods. It carries 750 or 1,000kg, or 1,200kg without cabin doors, in cabins made to size up to 1,500 x 2,500mm, and travels up to 24 metres between up to eight floors.
- Load
- 750 to 1,000kg
- Travel
- Up to 24m
- Floors
- Up to 8
- Pit
- 300mm
A heavy duty lift for people and light goods
The ELFO HD is built for people and light goods, carrying 750 or 1,000kg, or up to 1,200kg without cabin doors. Its cabin is made to size, from 900 to 1,500mm wide and from 1,400 to 2,500mm deep, to suit the building and what it needs to carry.
It runs on a hydraulic drive with its pump and controls in a machine room or a compact cabinet near the shaft. It travels up to 24 metres between up to eight floors at 0.15 metres a second, and needs a 300mm pit and a 400V three phase supply.
If the power fails, the lift travels down to a lower floor by itself and opens its doors. It meets the Machinery Directive and EN 81-41, certified by IMQ, with entrances on one side, on opposite sides, on adjacent sides or on three sides.
Doors and finishes for busy buildings
Landing doors can be automatic sliding, with a heavy duty sill available, or hinged steel doors, single up to 1,000mm wide or double from 1,000 to 1,400mm, which can be fire rated to E120, EI60 or EI120. Aluminium and fully glazed hinged doors are also available.

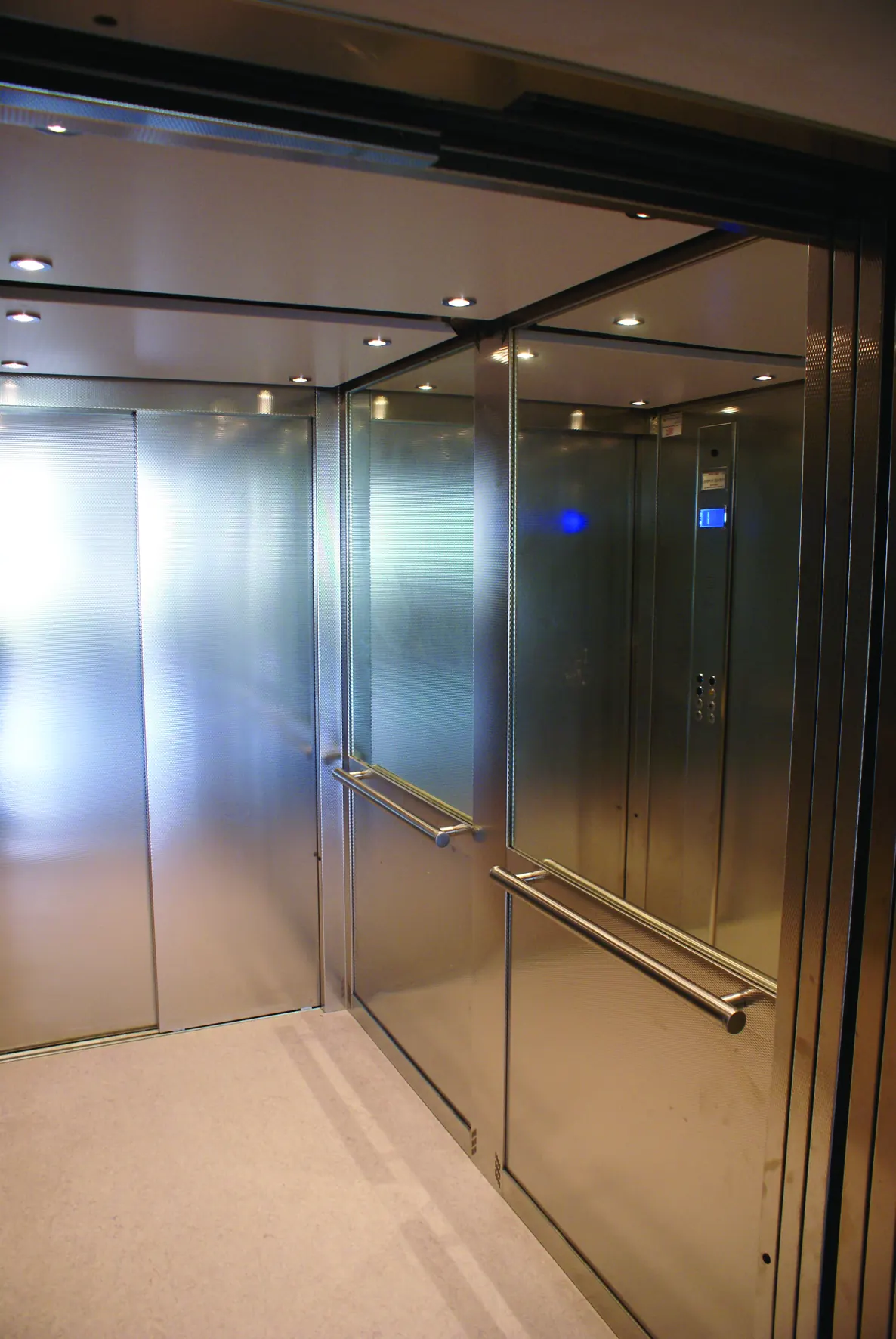

Cabin walls, profiles, control panels and ceilings come in EP's skinplate and RAL colours or in brushed, polished or patterned stainless steel, with a choice of ceilings including LED lighting.
Key features
- Rated loads of 750 or 1,000kg, or 1,200kg without cabin doors
- Cabins made to size, from 900 x 1,400mm up to 1,500 x 2,500mm
- Up to eight floors and 24 metres of travel
- 300mm pit
- Hydraulic drive on a 400V three phase supply
- Single, opposite, adjacent or triple entrances
- Automatic sliding doors, with a heavy duty sill available
- Hinged steel landing doors up to 1,400mm, with fire ratings available
- Stainless steel, skinplate or RAL finishes
- Travels down to a lower floor and opens its doors in a power cut
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Width
- 900mm
- Depth
- 1,400mm
The ELFO HD cabin is made to size anywhere between these two, and the shaft is designed around it at survey.
- Type of lift
- Heavy duty hydraulic lift for people and light goods
- Manufacturer
- EP (Elevatori Premontati), made in Italy
- Drive system
- Hydraulic, indirect 2:1, with a cantilever sling
- Rated speed
- 0.15m/s
- Rated loads
- 750 or 1,000kg, or 1,200kg without cabin doors
- Cabin size
- Made to size, 900 to 1,500mm wide and 1,400 to 2,500mm deep
- Travel height
- Up to 24 metres
- Stops
- Up to 8
- Entrances
- Single, opposite, adjacent or triple
- Landing doors
- Automatic sliding, or hinged steel doors single up to 1,000mm or double from 1,000 to 1,400mm, aluminium or fully glazed
- Fire rated doors
- E120, EI60 or EI120, as an option on hinged steel landing doors
- Pit
- 300mm
- Headroom
- 2,500 to 2,700mm, depending on the cabin height and doors
- Machinery
- Pump and controls in a machine room or a compact cabinet
- Power supply
- 400V three phase
- Emergency operation
- Travels down to a lower floor and opens the doors in a power cut
- Technical compliance
- Machinery Directive 2006/42/EC and EN 81-41, certified by IMQ
