EP hydraulic home lift
EP ELFO XL
The ELFO XL is a hydraulic home lift made in Italy by EP. It carries 300, 400 or 500kg between up to eight floors, travels up to 15.5 metres and needs a pit of just 130 to 160mm, with six standard cabin sizes to suit the space you have.
- Load
- 300 to 500kg
- Travel
- Up to 15.5m
- Floors
- Up to 8
- Pit
- 130 to 160mm
An Italian home lift with a shallow pit
The ELFO XL runs on a hydraulic drive, with its pump and controls in a small machine room or a compact cabinet near the shaft. It needs a pit of just 130 to 160mm, so there is very little digging into the floor, and it travels at 0.15 metres a second.
Six standard cabins run from 800 x 1,200mm for 300kg up to 1,400 x 1,400mm for 500kg. The lift serves up to eight floors, with entrances on one side, on opposite sides, on adjacent sides or on three sides, and it fits a masonry shaft or EP's own steel structure where there is no shaft.
If the power fails, the lift travels down to a lower floor by itself and opens its doors, so nobody is left waiting inside. It meets the European Machinery Directive and EN 81-41, certified by IMQ, and runs from a single phase or three phase supply.
Cabins and doors finished to suit your home
The cabin comes in two styles: Moderna, with flush profiles and a flush control panel, and Classica, with raised profiles and a skirting for a more traditional look.
Walls come in a wide choice of finishes, from brushed or polished stainless steel and RAL paint colours to glass and real wood veneer, with LED spotlight ceilings and a choice of control panels.

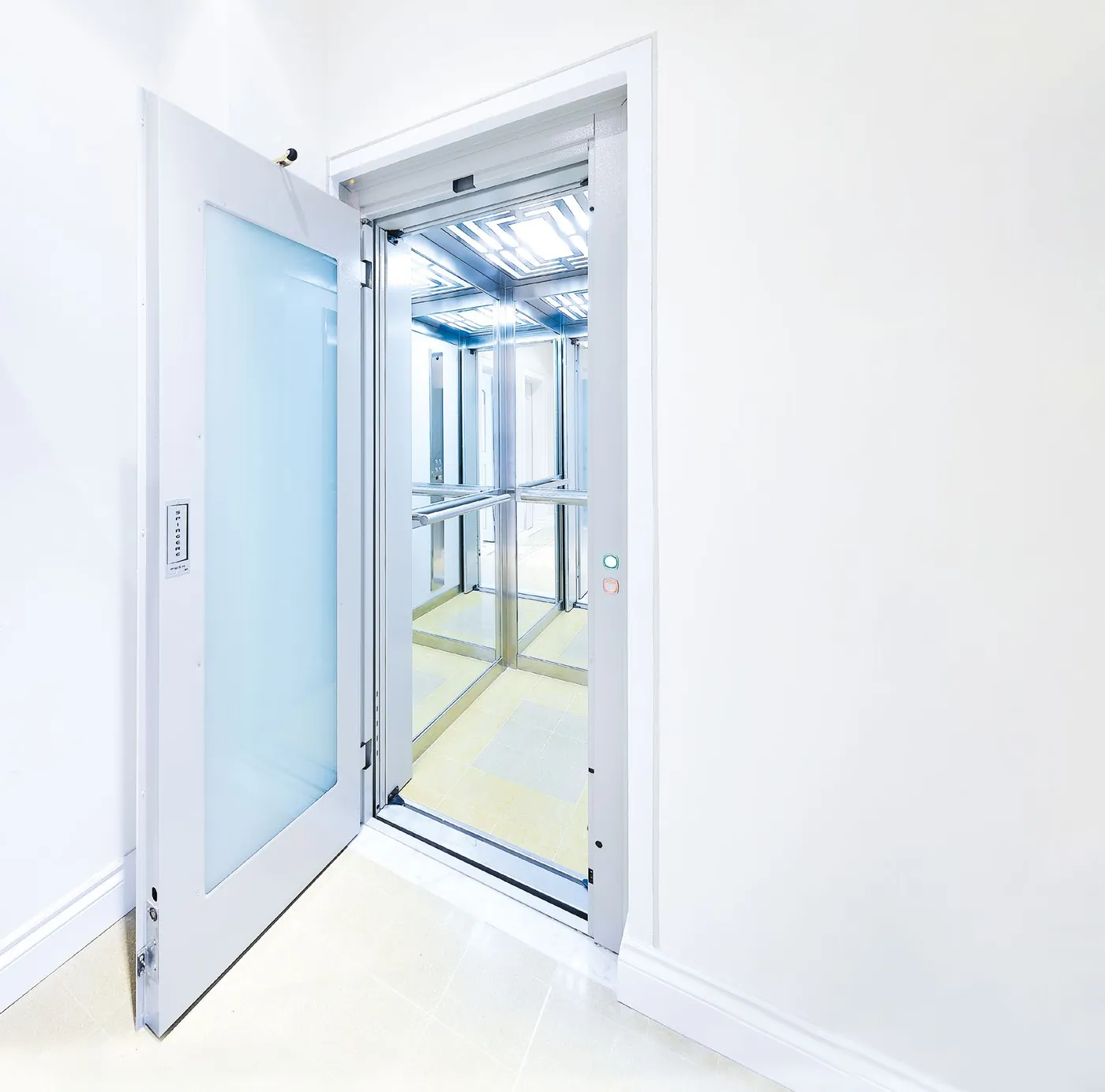

Landing doors can be hinged or automatic sliding, and the cabin can have its own folding or automatic sliding doors. Without cabin doors, the lift runs on hold-to-run buttons; with them, it answers calls automatically like a conventional lift.
Key features
- Rated loads of 300, 400 or 500kg
- Six standard cabin sizes, from 800 x 1,200mm to 1,400 x 1,400mm
- Up to eight floors and 15.5 metres of travel
- Pit of just 130 to 160mm
- Masonry shaft or EP's own steel structure
- Single, opposite, adjacent or triple entrances
- Hinged or automatic sliding landing doors, with optional cabin doors
- Moderna and Classica cabin styles in a wide choice of finishes
- Travels down to a lower floor and opens its doors in a power cut
- Single phase or three phase supply
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 300kg
- Clear opening
- 750mm
Shaft sizes are for a masonry shaft with hinged landing doors and no cabin doors. Other door and entrance arrangements can need a larger shaft, confirmed at survey.
- Type of lift
- Hydraulic home lift for up to eight floors
- Manufacturer
- EP (Elevatori Premontati), made in Italy
- Drive system
- Hydraulic, indirect 2:1, with a cantilever sling
- Rated speed
- 0.15m/s
- Rated loads
- 300, 400 or 500kg
- Travel height
- Up to 15.5 metres at 300kg and 13.5 metres at 400 or 500kg, with longer travel subject to feasibility
- Stops
- Up to 8
- Entrances
- Single, opposite, adjacent or triple
- Landing doors
- Hinged, or automatic sliding with two or three panels
- Cabin doors
- None, folding, or automatic sliding
- Controls
- Hold-to-run without cabin doors, automatic with cabin doors
- Cabin size
- Six standard cabins, from 800 x 1,200mm to 1,400 x 1,400mm
- Pit
- 130 to 160mm
- Headroom
- From 2,150 to 2,450mm, depending on the doors and cabin height
- Shaft
- Masonry shaft or EP's own steel structure
- Machinery
- Pump and controls in a small machine room or a compact cabinet
- Power supply
- 230V single phase or 400V three phase
- Emergency operation
- Travels down to a lower floor and opens the doors in a power cut
- Technical compliance
- Machinery Directive 2006/42/EC and EN 81-41, certified by IMQ
Cabin sizes
Standard cabins in a masonry shaft, with hinged landing doors and no cabin doors.
| Cabin size | Minimum shaft | Rated load | Clear opening |
|---|---|---|---|
| 800 x 1,200mm | 950 x 1,540mm | 300kg | 750mm |
| 950 x 1,300mm | 1,100 x 1,640mm | 400kg | 800mm |
| 1,100 x 1,400mm | 1,250 x 1,740mm | 400kg | 900mm |
| 1,200 x 1,200mm | 1,350 x 1,540mm | 400kg | 800mm |
| 1,300 x 1,300mm | 1,450 x 1,640mm | 500kg | 900mm |
| 1,400 x 1,400mm | 1,550 x 1,740mm | 500kg | 900mm |
- Cabin doors, sliding landing doors and some entrance arrangements need a larger shaft, confirmed at survey.
- Where there is no masonry shaft, EP's own steel structure is sized to suit the cabin.
