ILS platform lift
ILS 05K
The ILS 05K is a platform lift built in Sweden by Innovation Lift Scandinavia. It carries up to 500kg or five persons, travels up to 13 metres and needs only a 50mm pit, or a ramp instead, with swing doors on up to three sides.
- Rated load
- 500kg, 5 persons
- Travel
- Up to 13m
- Pit
- 50mm or a ramp
- Doors
- Up to 3 sides
A platform lift that needs almost no pit
The ILS 05K is a platform lift built in Sweden by Innovation Lift Scandinavia. It carries up to 500kg or five persons and travels up to 13 metres, with a screw and nut drive and double monitored brakes.
It needs only a 50mm pit, or no pit at all with a ramp, which keeps builders' works to a minimum. At The Foundry in Manchester we installed an ILS 05K at finished floor level with ramp access, instead of excavating a lift pit.
Doors, controls and safety

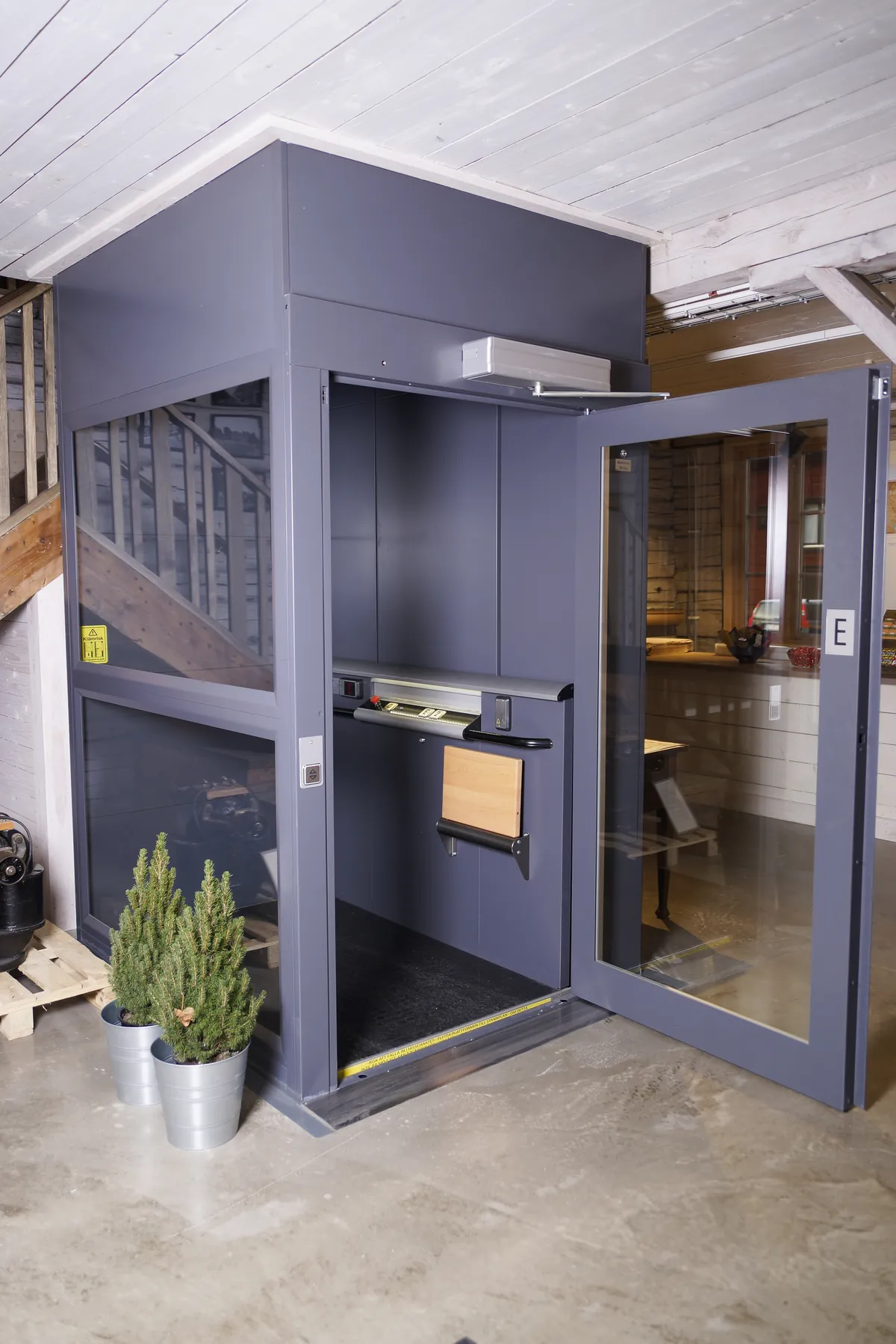

Swing doors can be fitted on up to three sides, from 600 to 1,300mm wide, and are fully glazed as standard. Vision panel, aluminium and EI60 fire-rated landing doors are available, along with a 1,100mm half gate.
The ride is quiet, below 70dB(A), with soft starts and stops. The lift is operated with hold-to-run buttons that carry tactile and braille markings, and battery emergency lowering is built in.
Key features
- Rated load of 500kg, for up to 5 persons
- Travel up to 13 metres at up to 0.15m/s
- 50mm pit, or no pit with a ramp
- Minimum top height of 2,300mm, or 1,100mm with a half gate
- Swing doors on up to three sides, fully glazed as standard
- EI60 fire-rated landing doors available
- Screw and nut drive with double monitored brakes
- Battery emergency lowering
- Hold-to-run buttons with tactile and braille markings
- Quiet, below 70dB(A)
- RAL 9003 white as standard, other RAL colours on request
- Door operators, an emergency phone and a fold-down seat available
- Built in Sweden
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Outside size
- 1,470 x 1,480mm
- Rated load
- 500kg, 5 persons
Outside sizes are for doors at one end. The platform is drawn centred inside the outside size, and your survey fixes the exact layout.
- Type of lift
- Platform lift
- Manufacturer
- Innovation Lift Scandinavia, Sweden
- Rated load
- 500kg, 5 persons
- Rated speed
- Up to 0.15m/s
- Travel height
- Up to 13,000mm
- Pit
- 50mm, or installed on the floor with a ramp
- Top height
- Minimum 2,300mm (1,100mm with a half gate)
- Drive system
- Screw and nut with double monitored brakes
- Motor
- 2.2kW
- Power supply
- 380 to 400V 3-phase 50/60Hz 16A (230V 3-phase or 1-phase optional)
- Control
- PLC with soft start and stop
- Operation
- Hold-to-run buttons with tactile and braille markings
- Doors
- Swing doors on up to three sides, 600 to 1,300mm wide, fully glazed as standard
- Door options
- Vision panel, aluminium, EI60 fire-rated landing door, or a 1,100mm half gate
- Emergency lowering
- Battery-powered
- Noise
- Below 70dB(A)
- Environment
- Indoor, +5°C to +40°C
- Usage
- 30 starts per hour
- Finish
- RAL 9003 white as standard, other RAL colours on request, glazing optional
- Options
- Door operators, level indicator, emergency phone, fold-down seat, chequer plate floor
- Technical compliance
- European Machinery Directive 2006/42/EC and European Standard EN 81-41:2010
Standard platform sizes
| Platform size | Outside size | Rated load |
|---|---|---|
| 1,100 x 1,400mm | 1,470 x 1,480mm | 500kg, 5 persons |
| 1,000 x 1,500mm | 1,370 x 1,580mm | 500kg, 5 persons |
| 1,100 x 1,500mm | 1,470 x 1,580mm | 500kg, 5 persons |
| 1,100 x 1,600mm | 1,470 x 1,680mm | 500kg, 5 persons |
- Outside sizes are for doors at one end. Doors at both ends add 30mm to the depth, and a door on the side adds 30mm to the width.
- The cut-out in each floor is 30mm larger than the outside size each way.
- Other platform sizes are available in 100mm steps, from 700mm wide up to 1,100 x 1,600mm.
