Aritco home lift
Aritco HomeLift Compact

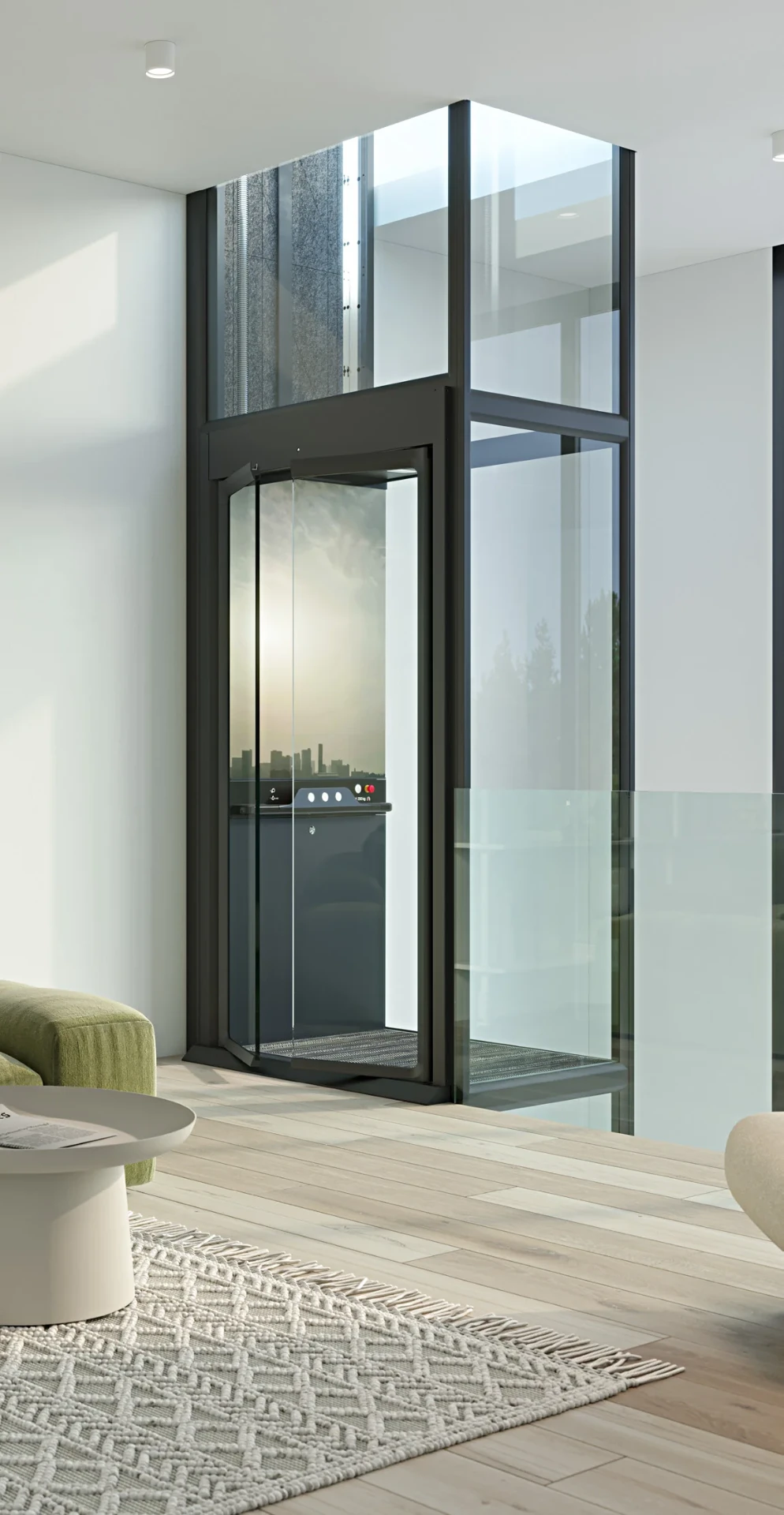

The Aritco HomeLift Compact is Aritco's most space-efficient home lift, with external dimensions from just 840 x 880mm. With a sleek platform design, a control panel with integrated handrail, a mirror or DesignWall and more than 200 colours to choose from, it opens up possibilities in homes previously considered too limited in space for a lift.
- External size
- From 840 x 880mm
- Travel
- Up to 15m
- Top height
- 2,248mm
- Installation
- Normally two days
Great things in a small package
Sometimes great things come in small packages. The Aritco HomeLift Compact opens up possibilities in homes that were previously considered too limited in space for a lift, combining the advantages of being small with the ability to think big.
The platform has a full-height side wall with an LED light cap, a mirror as standard or an optional DesignWall with one of eight artworks by Scandinavian designers and artists, and a control panel with integrated handrail. The destination buttons are 32mm round buttons with translucent numbers on a matt stainless steel touch plate.
It needs no extra machine room or headroom beyond its fixed 2,248mm top height, and a normal installation takes just two days.
Made to suit your home
The lift comes in three standard colours, Traffic White, Jet Black and Anthracite Grey, or can be painted in any RAL colour from the RAL K7 Classic chart, except pearl and fluorescent colours. Choose from eight floorings, including vinyl and Bolon options, and shaft panels in steel or glass, with clear glass as standard and tinted glass as an option.
Doors are available as a large glass door, a swing door with a glass window, or as double glass doors with two automatic door openers, which are recommended where space in front of the lift is limited.
The lift is SmartLift enabled for live status information in the app, and its SmartSafety system includes safety edges on the platform and platform wall, battery-powered emergency lowering and a self-locking screw-and-nut drive that stops the lift from falling.
Key features
- Aritco's most space-efficient home lift, from 840 x 880mm outside
- Control panel with integrated handrail
- Mirror as standard, or a DesignWall with one of 8 artworks
- Three standard colours, or any RAL K7 Classic colour except pearl and fluorescent
- 8 floorings, including vinyl and Bolon
- Steel or glass shaft panels, in clear or tinted glass
- Large glass swing door, or double doors with automatic openers
- SmartLift app with live status information
- Safety edges and a self-locking screw-and-nut drive
- Battery-powered emergency lowering
- Fixed 2,248mm top height
- More than 95% of parts recyclable
- CE and UKCA marked
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 250kg, 2 persons
- External size
- 840 x 880mm
The carrier is drawn centred inside the external size, with an end door. Your survey fixes the exact layout.
- Intended use
- Home lift for buildings where the users are known, indoor installation
- Drive system
- Patented screw-and-nut system
- Rated speed
- 0.15m/s
- Travel height
- 1,600 to 15,000mm
- Number of floors
- 2 to 6
- Top height
- Always 2,248mm
- Pit
- 50mm recessed, or installed directly on the floor with a 50mm ramp
- Door opening height
- 2,000mm (large glass doors also 1,800 or 1,900mm, except on the top floor)
- Door opening width
- 800mm on the end door, or 900mm on side doors (1,080 x 805mm model only)
- Operation
- Hold to run on the platform, one-touch call from the landings
- Power supply
- 230V 1-phase, 16A slow fuse
- Motor
- 2.2kW
- Emergency lowering
- Battery-powered
- Technical compliance
- European Machine Directive 2006/42/EC and European Standard EN 81-41
- Warranty
- 5-year product warranty and 10-year drive technology warranty
Sizes and rated loads
| Model | Carrier size | External size | Rated load |
|---|---|---|---|
| Model 1 | 580 x 805mm | 840 x 880mm | 250kg, 2 persons |
| Model 2 | 880 x 805mm | 1,140 x 880mm | 250kg, 2 persons |
| Model 3 | 1,080 x 805mm | 1,340 x 880mm (1,340 x 930mm with side doors) | 250kg, 2 persons |
Why Premium Lifts
Survey
Free, no obligation
Engineers
Our own team
Aftercare
Servicing and repairs
Coverage
North West
Interested in the Aritco HomeLift Compact? Call us on 07767 150674
Contact us for a free, no-obligation survey and we will recommend the right specification for your building.
