Open platform lift
Barduva RB150
The Barduva RB150 is an open platform lift, also known as a wheelchair lift, for level changes from 600mm up to 3,000mm, inside or outside. With a 400kg maximum capacity and no pit required, it is a space-saving and cost-effective alternative to a fully enclosed platform lift, designed for little or no alteration to existing buildings.
- Travel
- 600mm to 3m
- Capacity
- 400kg
- Stops
- 2
- Pit
- None required
Step-free access with little or no building work
The Barduva RB150 is an open platform lift that provides internal or external vertical travel from 600mm up to 3,000mm, in commercial and domestic environments. It is designed for applications with little or no alteration to existing buildings, and gives a safe and easy way into a property where stairs would otherwise prevent wheelchair access.
It needs no pit, has low space requirements and is simple to install and easy to service, with overall low maintenance and running costs. Three standard platforms, 1,100, 1,000 or 900mm wide and 1,400mm deep, carry ambulant and wheelchair users with a maximum capacity of 400kg, and Barduva supplies every lift with a 24-month warranty as standard.
Open design, quiet and simple to use

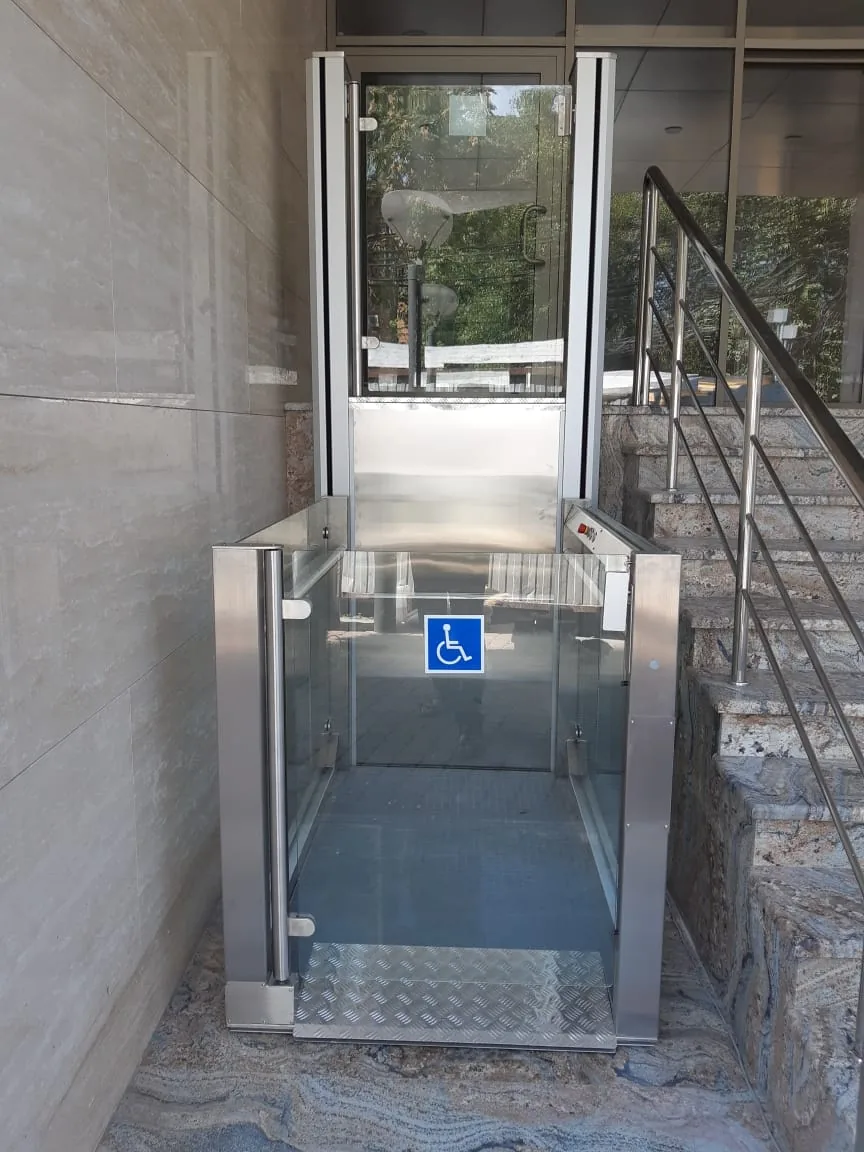

The open design gives an aesthetically pleasing solution, with a modern lightweight construction. Indoors it is finished in RAL 9006 anodised aluminium, with other RAL colours as an option, and outdoors it is built in brushed stainless steel with an anti-slip aluminium plate floor.
Operation is silent, the illuminated hold-to-run controls are simple to use, and handrails are integrated on both sides. A sensitive plate under the platform, an emergency stop button, an alarm and an anti-fall system come as standard, with automatic gates, 90-degree access, a fold-down seat, a joystick control, an auto dialler, braille on the controls and a battery emergency lowering device all available as options.
Key features
- Travel from 600mm to 3,000mm
- 2 stops
- 400kg maximum capacity
- No pit required
- For internal or external use
- Three standard platforms: 1,100, 1,000 or 900 x 1,400mm
- Manual gates as standard, automatic gates optional
- Belt drive and silent operation
- Illuminated hold-to-run controls
- Sensitive plate under the platform, emergency stop and alarm
- Handrails integrated on both sides
- Machine room integral to the guide rails
- 90-degree access available
- 24-month warranty as standard
- Made in the EU
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Outside size
- 1,300 x 1,770mm
- Gate opening
- 950mm
The plan shows the platform and its gate openings, with gate positions indicative. Outside sizes are Barduva's standard overall dimensions, and your survey fixes the exact layout.
- User group
- Ambulant and wheelchair users
- Manufacturer
- Barduva, Lithuania
- Installation
- Indoor or outdoor
- Travel
- 600 to 3,000mm
- Number of stops
- 2
- Maximum capacity
- 400kg
- Platform size
- 1,100 x 1,400mm, 1,000 x 1,400mm or 900 x 1,400mm as standard
- Cabin height
- 1,100mm
- Gates
- Manual as standard, automatic upper and lower gates optional
- Drive type
- Belt
- Power supply
- 220 to 240V 1-phase 16A, or 380 to 400V 3-phase 10A 50Hz
- Controls
- Illuminated, hold-to-run on the platform
- Safety
- Sensitive plate under the platform, emergency stop button, alarm and anti-fall system
- Handrails
- Integrated on both sides
- Machine room
- Integral to the guide rails
- Floor
- Anti-slip rubber indoors, anti-slip aluminium plate outdoors
- Finish
- RAL 9006 anodised aluminium indoors (other RAL colours optional), brushed stainless steel outdoors
- Pit
- None required (the optional bellows under the platform need a pit, see below)
- Options
- Automatic gates, 90-degree access, fold-down seat, joystick control, dual controls on the platform, auto dialler (Safeline or 2N, GSM), braille on the controls, battery emergency lowering, infra-red barrier, bellows, key locking, framed or metal gates and side walls, protection cover
- Warranty
- 24 months as standard
Standard platform sizes
| Platform size | Outside size | Gate opening |
|---|---|---|
| 1,100 x 1,400mm | 1,300 x 1,770mm | 950mm |
| 1,000 x 1,400mm | 1,200 x 1,770mm | 850mm |
| 900 x 1,400mm | 1,100 x 1,770mm | 750mm |
- Platforms 1,100mm deep are available as an option, 1,100, 1,000 or 900mm wide, with outside sizes of 1,300, 1,200 or 1,100 x 1,460mm.
- Made-to-measure platform depths from 900 to 1,800mm are also available.
Optional bellows under the platform
Bellows can be fitted under the 1,100 x 1,400mm platform as an option. With bellows, the pit depth depends on the travel.
| Travel | Pit depth |
|---|---|
| 600 to 1,000mm | 170mm |
| 1,010 to 2,000mm | 260mm |
| 2,010 to 3,000mm | 350mm |
90-degree access
With 90-degree access, the gates are on adjacent sides of the platform, opening to the right or to the left.
| Platform size | Outside size |
|---|---|
| 900 x 1,200mm | 1,262 x 1,320mm |
| 1,100 x 1,400mm | 1,462 x 1,520mm |
- Platform sizes run from 900 x 1,200mm up to 1,100 x 1,400mm.
