Aritco home lift
Aritco HomeLift
The Aritco HomeLift is a design-led lift for private homes, built around the DesignWall, a backlit wall with art from prominent Scandinavian designers or a picture of your own. With lighting you control from the SmartLift app, the SmartSafety system and five sizes to choose from, it is designed to be a decorative feature of your home in its own right.
- Travel
- Up to 15m
- Floors
- 2 to 6
- Rated load
- Up to 400kg
- Pit
- 37mm, or none

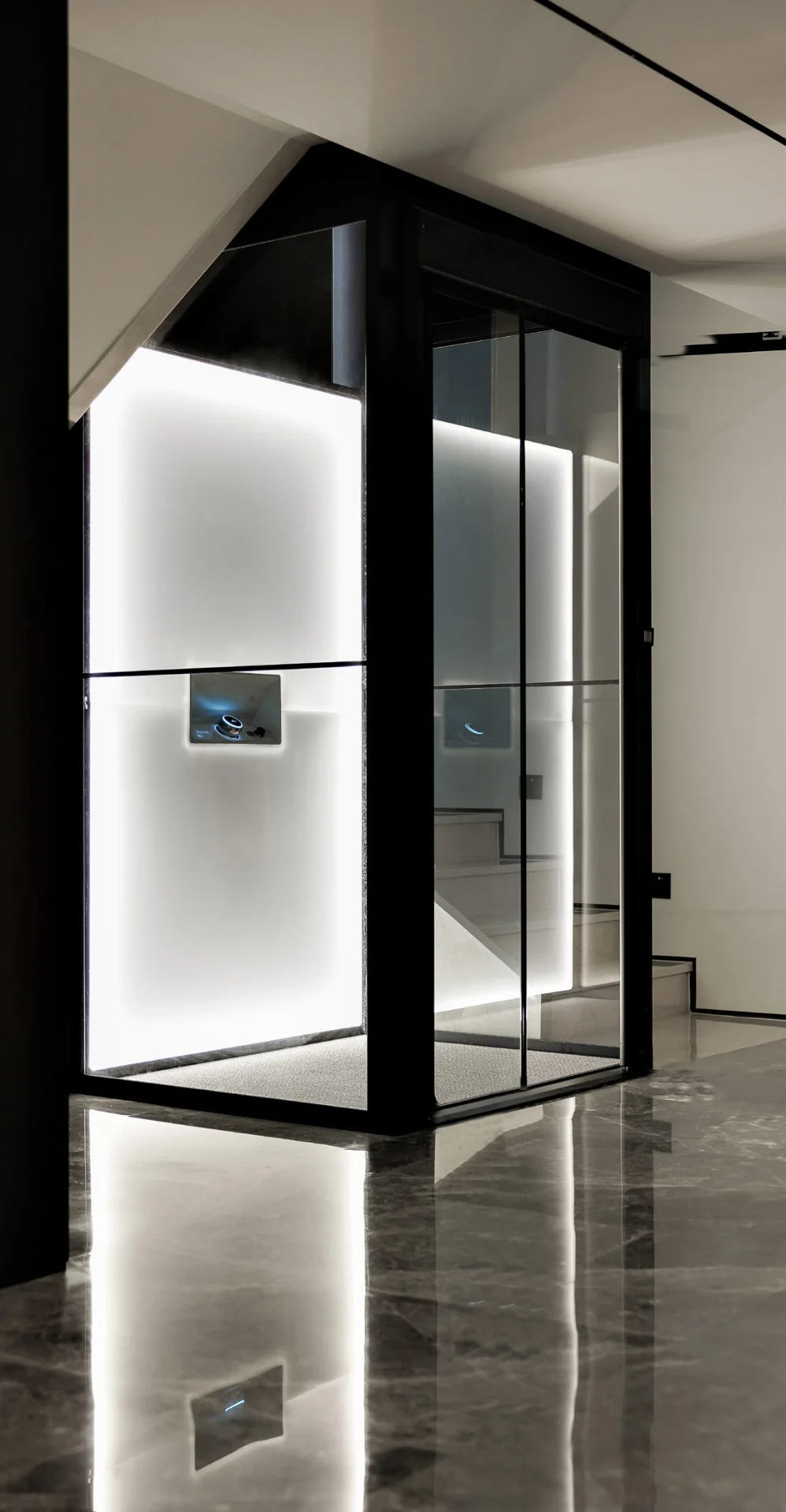

A lift designed to be seen
The Aritco HomeLift brings Scandinavian design into your home. At its heart is the DesignWall, a 2,000mm high backlit wall in hard-coated, scratch-resistant acrylic glass, supplied with a white background as standard, or with art from prominent Scandinavian designers or a picture of your own.
The DesignLight lets you set the lighting from the SmartLift app, in cool or warm white or optional coloured light, with Stars or Sphere light patterns in the ceiling. Choose from 16 lift colours, including Gold and Bronze, 9 floorings, 4 control panel colours and covering panels in wood or a concrete look-alike material, with glass walls in clear glass or optional tinted glass, and a Mesh or Diamond pattern available on clear glass.
Smart, safe and simple to use

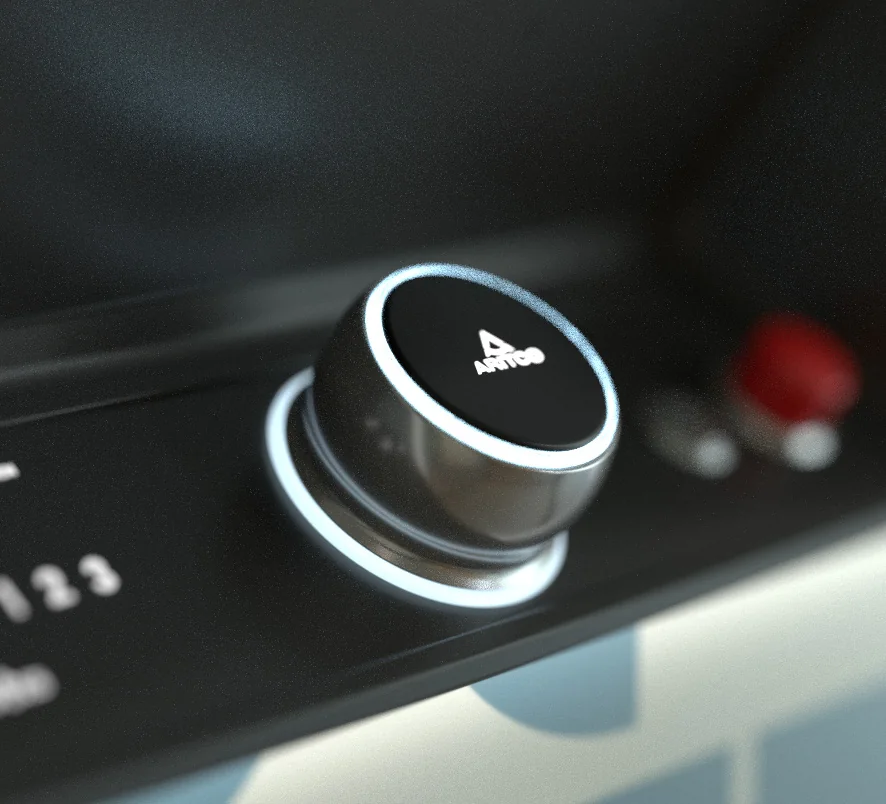

Instead of standard lift buttons, you choose a floor with the SmartControl, a stainless steel ring you turn to select a floor and press to start the lift, designed to be more user-friendly and ergonomic.
The SmartSafety system is designed to anticipate situations and prevent accidents. The doors sense if an obstacle is in the way, safety edges help stop anything getting trapped, the drive has dual safety brakes, and battery-powered emergency lowering takes the lift to the nearest lower floor if the power fails. Every HomeLift also has an autodialer for two-way communication.
The lift is SmartLift enabled, so you get live status information in the app, and your maintenance provider can use a Fleet management system for remote monitoring and support. Its patented screw-and-nut drive is silent and smell-free, and under normal conditions the lift is installed in just a few days.
Key features
- Backlit DesignWall with designer art or your own picture
- DesignLight in cool or warm white, with optional coloured light
- SmartControl ring for choosing floors
- Doors that sense obstacles
- Safety edges and dual safety brakes
- Battery-powered emergency lowering
- Autodialer for two-way communication
- 16 lift colours, including Gold and Bronze
- 9 floorings from the Bolon and carpet ranges
- Clear or tinted glass walls, with Mesh or Diamond patterns on clear glass
- Live status information in the SmartLift app
- 95% of components recyclable
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 250kg, 2 persons
- External size
- 966 x 880mm
The carrier is drawn centred inside the external size. Your survey fixes the exact layout.
- Intended use
- Private homes, indoor installation
- Drive system
- Patented screw-and-nut system
- Rated speed
- 0.15m/s inside Europe (0.30m/s outside Europe)
- Travel height
- 500 to 15,000mm inside Europe
- Number of floors
- 2 to 6
- Top height
- Minimum 2,225mm, up to 4,000mm
- Pit
- 37mm recessed, or installed directly on the floor with a ramp
- Door opening height
- 2,000mm
- Door opening width
- 630, 800 or 900mm, depending on size and door position
- Operation
- Hold to run in the lift, one-touch from the call buttons
- Power supply
- 230V 1-phase or 400V 3-phase
- Emergency lowering
- Battery-powered
- Technical compliance
- European Machine Directive 2006/42/EC and European Standard EN 81-41
- Warranty
- 5-year product warranty and 10-year drive technology warranty
Sizes and rated loads
| Model | Carrier size | External size | Rated load |
|---|---|---|---|
| S5 | 600 x 830mm | 966 x 880mm | 250kg, 2 persons |
| S8 | 1,000 x 830mm | 1,366 x 880mm | 250kg, 3 persons |
| S9 | 1,100 x 830mm | 1,466 x 880mm | 250kg, 3 persons |
| S12 | 1,000 x 1,200mm | 1,366 x 1,250mm | 400kg, 5 persons |
| S15 | 1,100 x 1,400mm | 1,466 x 1,450mm | 400kg, 5 persons |
Why Premium Lifts
Survey
Free, no obligation
Engineers
Our own team
Aftercare
Servicing and repairs
Coverage
North West
Interested in the Aritco HomeLift? Call us on 07767 150674
Contact us for a free, no-obligation survey and we will recommend the right specification for your building.
