Goods-only lift
Rhinolift Goods Lift
The Rhinolift is a high-performance goods-only lift with rated loads of 500, 1,000, 1,500 or 2,000kg, specially designed for buildings with a high turnover of goods between floors. Everything it needs to run is housed within its own freestanding modular structure, so there is no machine room and no major construction work inside your building.
- Rated load
- Up to 2,000kg
- Travel
- Up to 9m
- Levels
- Up to 4
- Machine room
- None needed
A goods lift built for busy buildings
We install the Rhinolift, a goods lift with rated loads of 500, 1,000, 1,500 or 2,000kg, specially designed for buildings with high turnover and movement of goods between floors, such as shopping centres, department stores, hypermarkets and industrial installations.
It needs no machine room and no pit to excavate. The geared traction motor is housed in the upper part of its freestanding modular structure, which is fully capable of bearing the weight of the whole system and incorporates a 100mm shaft pit, so it needs a straightforward loading ramp. Alternatively, a 100mm pit can be built below the structure.
Installation is designed to cause the minimum disruption to your business, with no major construction work inside the building, and the lift's energy consumption is significantly lower than that of conventional lift platforms, which reduces operating costs.
Goods only, or goods with an attendant
The standard Rhinolift is designed exclusively for goods transport. It is not a passenger lift, and no person should travel in it with the goods.
Where heavy goods need to travel with one or two competent attendants, the Rhinolift PRO adds a car operating panel with a constant pressure push button, an attendant key switch and an emergency stop, plus a full-height light curtain at the car entrance, vision panels in the landing doors and an alarm in case of entrapment.

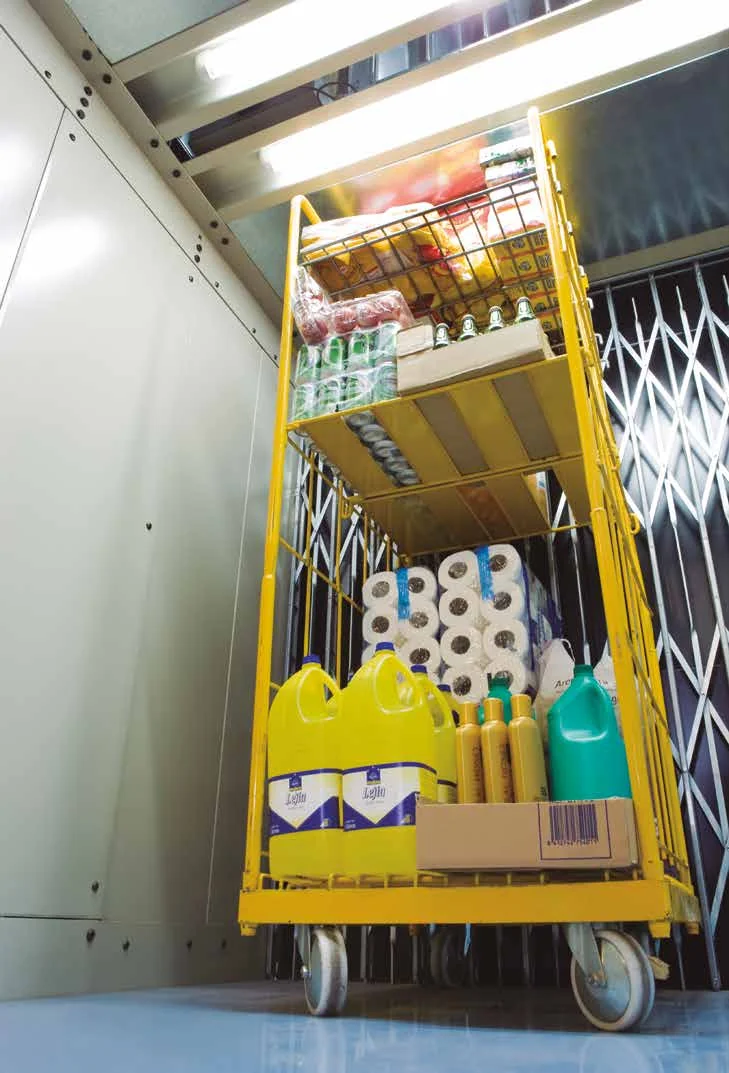

Cars are built in steel plate with a hard-wearing coated finish, and can be fitted with buffer rails and kick plates, rubber or chequer plate floors, and manual picket gates. Both versions are fully compliant with the EC Machinery Directive 2006/42/EC.
Key features
- Rated loads of 500, 1,000, 1,500 or 2,000kg
- Travel up to 9m, serving up to 4 levels
- No machine room, with the motor housed in the structure
- Freestanding modular structure with a 100mm built-in pit
- Car widths and depths from 1,000 to 2,000mm, in any combination
- Manual hinged landing doors with a window, rated E120
- Folding shutter gates and picket gates available
- Rhinolift PRO version for one or two attendants
- Energy consumption significantly lower than conventional lift platforms
- Compliant with the EC Machinery Directive 2006/42/EC
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Minimum shaft
- 1,470 x 1,180mm
- Rated load
- Up to 2,000kg
Four example car sizes: any width from 1,000 to 2,000mm works with any depth, and the minimum shaft is 470mm wider and 180mm deeper than the car.
- Application
- Goods only (Rhinolift PRO: goods with one or two attendants)
- Rated loads
- 500, 1,000, 1,500 or 2,000kg
- Rated speed
- 0.15m/s
- Drive system
- Geared traction machine with VVVF speed regulator
- Traction
- Gearbox with one brake (two on the Rhinolift PRO)
- Power supply
- 3-phase 380, 400 or 415V AC
- Travel
- Up to 9m
- Number of levels
- Up to 4
- Structure
- Freestanding modular structure in RAL 9005 Black, up to 12m high, anchoring to each floor recommended
- Pit
- 100mm pit built into the structure (needs a loading ramp, available as an optional extra), or a 100mm pit built below it
- Machine room
- Not required
- Minimum headroom
- Car internal height + 700mm (+ 750mm on the PRO at 1,500 and 2,000kg)
- Minimum shaft size
- Car width + 470mm by car depth + 180mm
- Entrances
- Single, or open through at 180°
- Landing doors
- Manual single or double hinged with window, epoxy painted steel, E120 to UNE EN 81-58:2004
- Car door
- Supplied without car doors as standard (manual picket gates optional)
- Car internal height
- 1,800, 1,900, 2,000, 2,100 or 2,200mm
- Car width and depth
- 1,000 to 2,000mm in 100mm steps
- Car finish
- Steel plate in RAL 7032 Beige
- Controls
- Call and send from the landings (constant pressure control in the car on the PRO)
- Compliance
- EC Machinery Directive 2006/42/EC
