EP electric home lift
EP ELFO T
The ELFO T is an electric traction home lift made in Italy by EP. With no machine room and no hydraulic oil, it runs from a normal single phase supply, carries 300 or 400kg up to 25 metres between up to eight floors, and needs a pit of just 150 or 190mm.
- Load
- 300 or 400kg
- Travel
- Up to 25m
- Floors
- Up to 8
- Pit
- 150 or 190mm
An electric home lift with no machine room
The ELFO T is driven by an electric traction unit fitted between the guide rails inside the shaft, so there is no machine room, no pump and no hydraulic oil. Its controls sit in a technical cabinet at the top of the shaft, or just outside it where the headroom is shallow, and it runs from a normal single phase supply.
It travels up to 25 metres between up to eight floors at 0.15 metres a second, which suits taller homes, and needs a pit of just 150mm for 300kg or 190mm for 400kg. Entrances can be on one side, on opposite sides, on adjacent sides or on three sides.
Four standard cabins run from 850 x 1,200mm for 300kg up to 1,100 x 1,400mm for 400kg. With the optional UPS unit, if the power fails the lift carries on to the most convenient floor and opens its doors. It meets the Machinery Directive and EN 81-41, certified by Bureau Veritas.
In a shaft or its own glazed structure

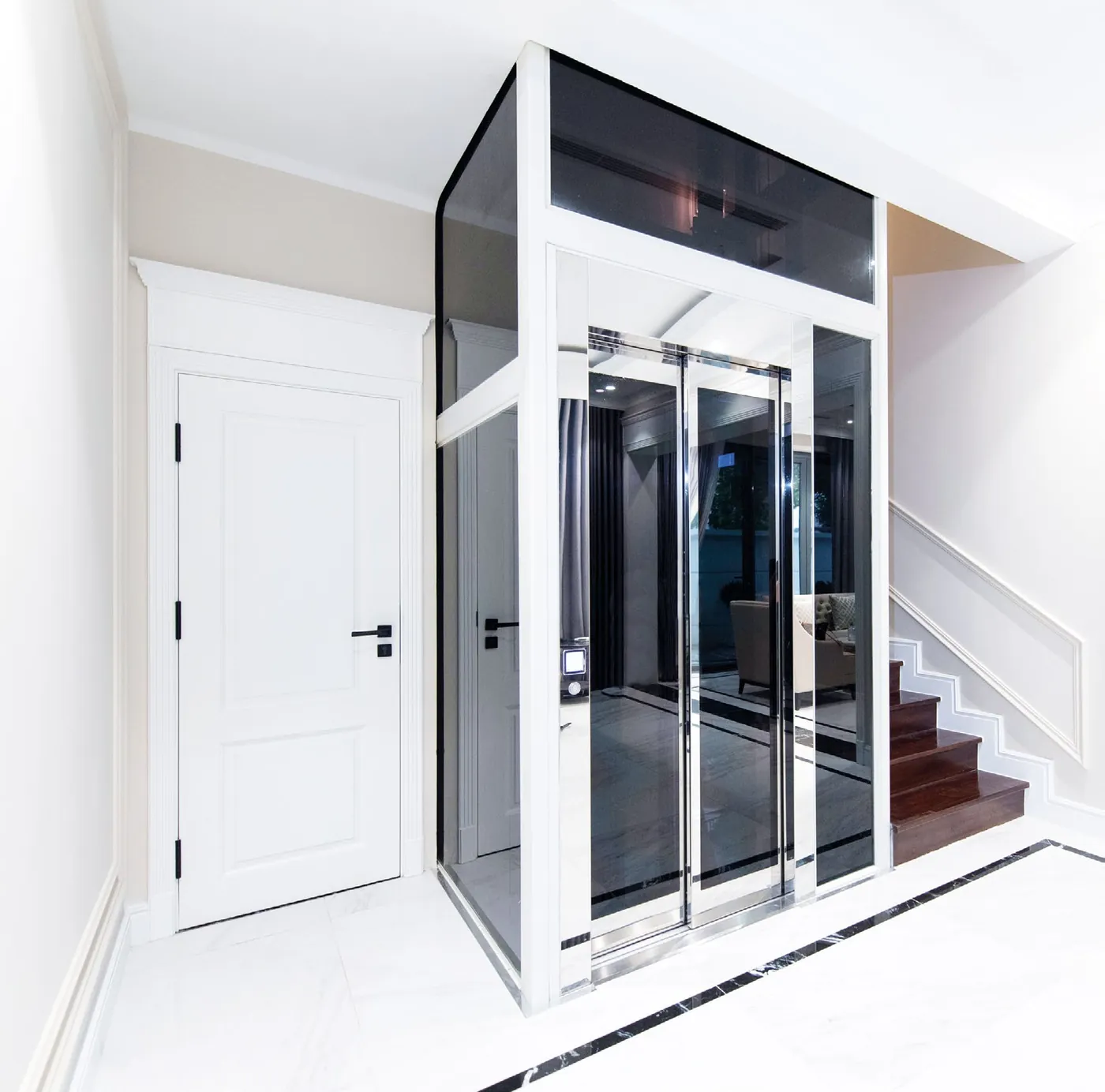

Where there is no masonry shaft, the ELFO T can travel inside EP's own steel structure, which can be glazed so the lift becomes a feature of a hallway or stairwell.
The cabin comes in Moderna or Classica styles, with walls in stainless steel, RAL paint colours, glass or real wood veneer. Landing doors can be hinged or automatic sliding, and the cabin can have its own folding or automatic sliding doors.
Without cabin doors, the cabin buttons are hold-to-run; with them, the lift answers calls automatically like a conventional lift.
Key features
- Rated loads of 300 or 400kg
- Four standard cabin sizes, from 850 x 1,200mm to 1,100 x 1,400mm
- Up to eight floors and 25 metres of travel
- Pit of 150mm for 300kg or 190mm for 400kg
- Electric traction drive, with no machine room and no hydraulic oil
- Runs from a normal single phase supply
- Masonry shaft or EP's own steel structure
- Single, opposite, adjacent or triple entrances
- Hinged or automatic sliding landing doors, with optional cabin doors
- Optional UPS unit that takes the lift to the most convenient floor in a power cut
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 300kg
- Clear opening
- 750mm
Shaft sizes are for a masonry shaft with hinged landing doors and no cabin doors. Other door and entrance arrangements can need a larger shaft, confirmed at survey.
- Type of lift
- Electric traction home lift for up to eight floors
- Manufacturer
- EP (Elevatori Premontati), made in Italy
- Drive system
- Electric traction, 1:1 roped, with a cantilever sling
- Machine room
- Not needed, as the traction unit sits between the guide rails
- Controls cabinet
- At the top of the shaft, or outside it where the headroom is shallow
- Rated speed
- 0.15m/s
- Rated loads
- 300kg for cabins under 1.2 square metres, or 400kg for cabins under 1.6 square metres
- Travel height
- Up to 25 metres
- Stops
- Up to 8
- Entrances
- Single, opposite, adjacent or triple
- Landing doors
- Hinged, or automatic sliding with two or three panels
- Cabin doors
- None, folding, or automatic sliding
- Controls
- Hold-to-run without cabin doors, automatic with cabin doors
- Cabin size
- Four standard cabins, from 850 x 1,200mm to 1,100 x 1,400mm
- Pit
- 150mm for 300kg or 190mm for 400kg, plus up to 20mm for your own flooring
- Headroom
- 2,350 to 2,730mm with a 2,100mm cabin, depending on the doors and where the controls cabinet sits
- Shaft
- Masonry shaft or EP's own steel structure
- Power supply
- 230V single phase
- Emergency operation
- Optional UPS unit that takes the lift to the most convenient floor and opens the doors in a power cut
- Technical compliance
- Machinery Directive 2006/42/EC and EN 81-41, certified by Bureau Veritas
Cabin sizes
Standard cabins in a masonry shaft, with hinged landing doors and no cabin doors.
| Cabin size | Minimum shaft | Rated load | Clear opening |
|---|---|---|---|
| 850 x 1,200mm | 1,000 x 1,600mm | 300kg | 750mm |
| 950 x 1,300mm | 1,100 x 1,700mm | 400kg | 800mm |
| 1,100 x 1,400mm | 1,250 x 1,800mm | 400kg | 900mm |
| 1,200 x 1,200mm | 1,350 x 1,600mm | 400kg | 800mm |
- Cabin doors, sliding landing doors and some entrance arrangements need a larger shaft, confirmed at survey.
- Where there is no masonry shaft, EP's own steel structure is sized to suit the cabin.
