GLE home lift
Improlift

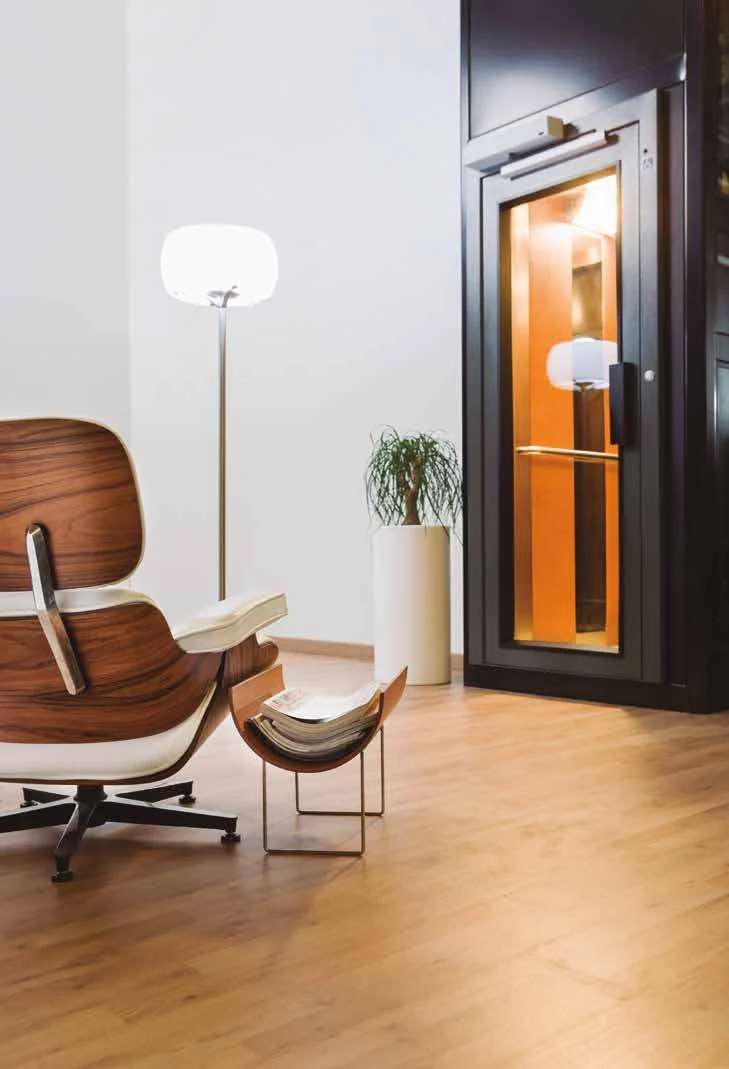

The Improlift is a compact hydraulic home lift from GLE, built for family homes where space is tight. It carries 250, 315 or 385kg up to 12 metres, travels inside its own freestanding structure or a masonry shaft, and needs a pit of just 100mm, or none at all with a ramp.
- Load
- 250 to 385kg
- Travel
- Up to 12m
- Doors
- Hinged
- Pit
- 100mm, or a ramp
A compact home lift without the building work
The Improlift is designed for family homes, where there is often very little room for a lift. It travels inside its own freestanding modular structure, which forms the shaft and takes up no more space than itself, so there is no major building work. It can also be installed in a masonry shaft, indoors or outdoors.
The structure has its own 100mm pit and a simple ramp, so there is no pit to dig, and in a masonry shaft the pit is just 100mm. The structure comes in a wide choice of colours, or with glazed walls on request, and there are five car designs, from laminate and Formica to stainless steel, custom printed glass and fully glazed panoramic cars.
It runs from a normal household supply and uses about as much energy as a household appliance, with an optional biodegradable hydraulic fluid. A 2D optical safety system brings the car to a smooth stop if it detects the slightest movement across the open car entrance, and an optional device returns the car to the ground floor if the power fails.
Key features
- Rated loads of 250, 315 or 385kg
- Travel up to 12 metres
- Cars from 600 to 1,100mm wide and 750 to 1,400mm deep
- Freestanding modular structure or masonry shaft
- Indoor or outdoor installation
- 100mm pit, or no pit with a ramp
- Hinged landing doors, with motorised landing doors and car doors available
- 2D optical safety stop across the car entrance
- Runs from a normal household supply
- Optional device that returns the car to the ground floor in a power cut
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 250kg
- Clear opening
- 700mm
Shaft sizes are for one entrance with the machinery at the side, inside a masonry shaft. The freestanding structure adds 74mm each way, and other arrangements are confirmed at survey.
- Type of lift
- Hydraulic home lift for passengers
- Drive system
- Hydraulic, with a central HL 6000 power unit
- Rated speed
- 0.15m/s
- Rated loads
- 250, 315 or 385kg
- Travel height
- Up to 12 metres
- Entrances
- Single, or double at 90 or 180 degrees, with three entrances designed for each project
- Doors
- Hinged landing doors with small glass panels, fire resistant for 120 minutes to EN 81-58, with motorised landing doors and automatic folding car doors available
- Door clear width
- 600, 700, 800 or 900mm (800mm for wheelchair access)
- Door clear height
- 2,000mm
- Car size
- 600 to 1,100mm wide and 750 to 1,400mm deep
- Car height
- 2,100mm as standard, or 2,000 or 2,200mm
- Pit
- 100mm, or 120mm with a granite car floor, or no pit with a ramp
- Headroom
- Car height plus 350mm
- Shaft
- Freestanding modular structure or masonry shaft, indoors or outdoors
- Shaft size
- Car width plus 255mm by car depth plus 110mm in a masonry shaft, with the freestanding structure adding 74mm each way
- Machine position
- Up to 5 metres of hydraulic hose from the lift
- Power supply
- 220 to 240V single phase, 1.5 or 2.2kW
- Controls
- Hold-to-run
- Emergency operation
- Manual emergency pump as standard, with an optional device that returns the car to the ground floor in a power cut
- Technical compliance
- European Machinery Directive 2006/42/EC
- Warranty
- Three years on mechanical parts, and one year on electrical items, the hydraulic unit and doors
Car sizes
Standard cars with one entrance and the machinery at the side, in a masonry shaft.
| Car size | Minimum shaft | Rated load | Clear opening |
|---|---|---|---|
| 800 x 1,250mm | 1,055 x 1,360mm | 250kg | 700mm |
| 900 x 1,100mm | 1,155 x 1,210mm | 250kg | 800mm |
| 1,000 x 1,000mm | 1,255 x 1,110mm | 250kg | 900mm |
| 1,100 x 900mm | 1,355 x 1,010mm | 250kg | 900mm |
| 800 x 1,400mm | 1,055 x 1,510mm | 315kg | 700mm |
| 1,000 x 1,250mm | 1,255 x 1,360mm | 315kg | 900mm |
| 1,100 x 1,125mm | 1,355 x 1,235mm | 315kg | 900mm |
| 900 x 1,400mm | 1,155 x 1,510mm | 315 or 385kg | 800mm |
| 1,000 x 1,300mm | 1,255 x 1,410mm | 385kg | 900mm |
| 1,100 x 1,200mm | 1,355 x 1,310mm | 385kg | 900mm |
| 1,100 x 1,400mm | 1,355 x 1,510mm | 385kg | 900mm |
- Cars suitable for a Type A wheelchair: 800 x 1,250, 900 x 1,100, 800 x 1,400, 900 x 1,400, 1,100 x 1,200 and 1,100 x 1,400mm.
- The freestanding structure adds 74mm to the shaft size each way.
- Machinery at the rear, double entrances at 90 degrees and triple entrances change the shaft size, confirmed at survey.
