Aritco home lift
Aritco HomeLift Access
The Aritco HomeLift Access is a practical home lift designed to give access to all parts of your house, for you, your family and your friends. It comes in eight platform sizes, from a compact two-person model to larger platforms for a wheelchair user with an attendant, with more than 200 colours, a half-height door option for low headroom and SmartLift connectivity.
- Platform sizes
- 8
- Rated load
- Up to 500kg
- Travel
- Up to 13m
- Pit
- 50mm, or none
Access to every floor, for everyone
The Aritco HomeLift Access is designed to give access to all parts of your house for you, your family and your friends. It comes in eight platform sizes with rated loads of 250, 410 or 500kg, from a compact 900 x 1,040mm platform for two people to larger platforms that take a wheelchair user with an attendant.
The platform comes with a 1,100mm half-height side wall and an LED-lit control panel as standard. For a more conventional lift feel, an optional 2,100mm full-height wall with a mirror and integrated LED lighting, or a DesignWall with artwork by Scandinavian designers, is available on selected platform sizes.
Choose from more than 200 colours, eight floorings and clear or tinted glass. Doors include a large glass door, double-hinged doors with two internal openers for tight spaces in front of the lift, a half-height door on the top floor where headroom is low, and EI60 fire and smoke proof doors.

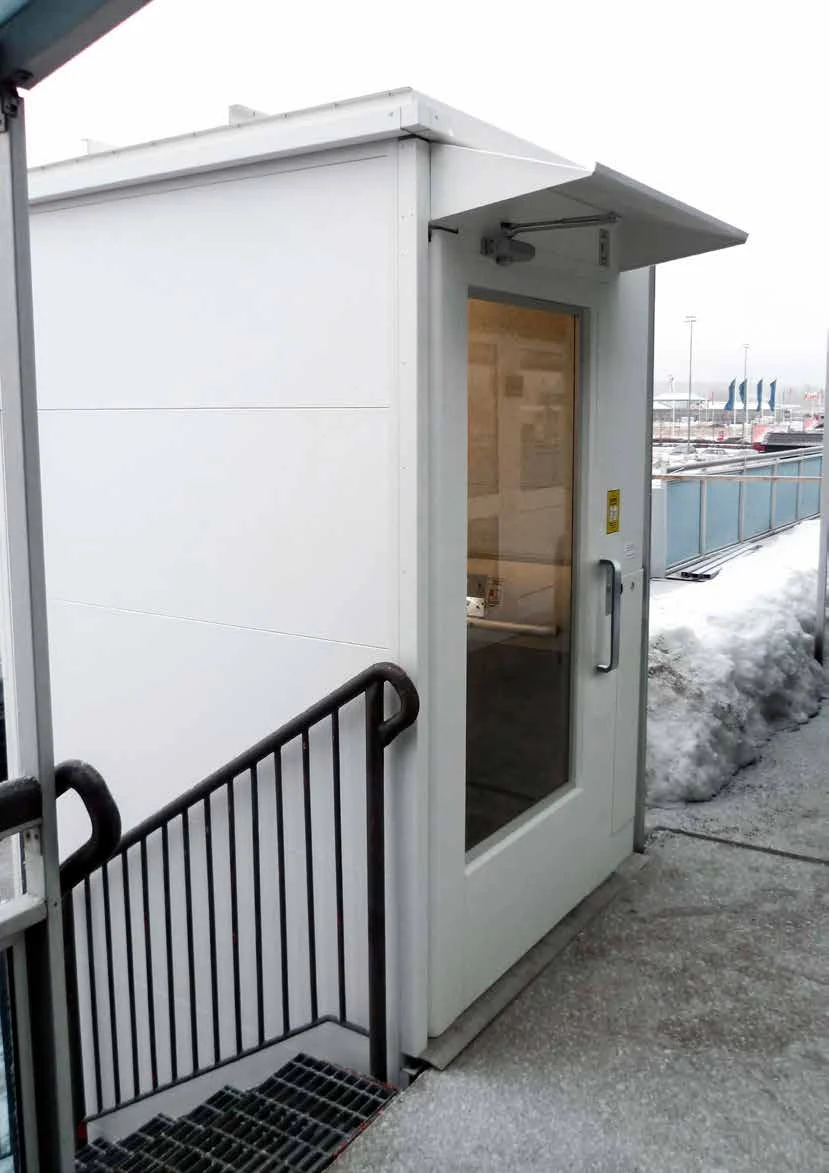

Indoors or outdoors
An outdoor version is available for the 1,100 x 1,480mm platform, with travel up to 10m. It comes with corrosion class C5 guide rails, a sealed electrical cabinet cover and ventilation fans, and is designed for temperatures from -5°C to +40°C.
Depending on the site, an outdoor lift needs an outer roof unless it stands in an external shaft, and door canopies where there is no roof over the doors. A heater in the bottom of the shaft is recommended for cold climates, and anywhere colder than -5°C needs an externally insulated and heated shaft.
Indoors or out, the lift is SmartLift enabled for live status information in the app. Its SmartSafety system includes safety edges, battery-powered emergency lowering and a self-locking screw-and-nut drive, all its parts sit within the shaft so no machine room is needed, and a normal installation takes two days.
Key features
- Eight platform sizes, from 900 x 1,040mm to 1,000 x 1,980mm
- Rated loads of 250, 410 or 500kg
- Sizes for a wheelchair user alone or with an attendant
- More than 200 colours and eight floorings
- Half-height door option on the top floor for low headroom
- EI60 fire and smoke proof doors available
- Double-hinged doors with openers for tight spaces
- Clear or tinted glass
- Outdoor version for the 1,100 x 1,480mm platform
- SmartLift app with live status information
- Safety edges and battery-powered emergency lowering
- Top height from 2,240mm to 4,000mm
- 95% recyclable materials
Specification
Figures from the product documentation. We confirm the exact specification for your building at survey.
- Rated load
- 250kg, 2 persons
- Wheelchair
- None listed
The platform is drawn centred inside the external size. Your survey fixes the exact layout.
- Intended use
- Private homes, indoor and outdoor installation
- Drive system
- Patented screw-and-nut system
- Rated speed
- 0.15m/s inside Europe (0.25m/s outside Europe)
- Travel height
- 500 to 13,000mm (up to 3,000mm with a half-height door)
- Number of floors
- 2 to 6 (up to 2 doors per floor, 6 per lift)
- Top height
- Minimum 2,240mm, maximum 4,000mm (1,100 to 1,600mm with a half-height door)
- Pit
- 50mm recessed, or installed directly on the floor with a 50mm ramp
- Door opening height
- 1,800 to 2,100mm depending on the door type (half-height doors 1,100 to 1,600mm)
- Door opening width
- 800 or 900mm
- Operation
- Hold to run on the platform, one-touch call from the landings
- Power supply
- 230V 1-phase, 230V 3-phase or 400V 3-phase (500kg sizes need 3-phase)
- Motor
- 2.8kW (3kW for the higher speed option)
- Emergency lowering
- Battery-powered
- Technical compliance
- European Machine Directive 2006/42/EC and European Standard EN 81-41
- Outdoor version
- 1,100 x 1,480mm platform, travel up to 10m, -5°C to +40°C, C5 guide rails
- Warranty
- 5-year product warranty and 10-year drive technology warranty
Platform sizes and rated loads
| Model | Platform size | External size | Rated load | Wheelchair |
|---|---|---|---|---|
| Model 1 | 900 x 1,040mm | 1,300 x 1,160mm | 250kg, 2 persons | None listed |
| Model 2 | 900 x 1,280mm | 1,300 x 1,400mm | 410kg, 5 persons | Lone user or type A |
| Model 3 | 900 x 1,480mm | 1,300 x 1,600mm | 410kg, 5 persons | Type A or B with attendant |
| Model 4 | 1,000 x 1,280mm | 1,400 x 1,400mm | 410kg, 5 persons | Lone user or type A |
| Model 5 | 1,000 x 1,480mm | 1,400 x 1,600mm | 410kg, 5 persons | Type A or B with attendant |
| Model 6 | 1,100 x 1,480mm | 1,500 x 1,600mm | 410kg, 5 persons | Type A or B with attendant, adjacent entry |
| Model 7 | 1,000 x 1,980mm | 1,400 x 2,100mm | 500kg, 6 persons | Type A or B with attendant |
| Model 8 | 1,100 x 1,580mm | 1,500 x 1,700mm | 500kg, 6 persons | Type A or B with attendant, adjacent entry |
- Wheelchair suitability follows EN 81-41 and EN 81-70. National guidelines may apply.
Why Premium Lifts
Survey
Free, no obligation
Engineers
Our own team
Aftercare
Servicing and repairs
Coverage
North West
Interested in the Aritco HomeLift Access? Call us on 07767 150674
Contact us for a free, no-obligation survey and we will recommend the right specification for your building.
